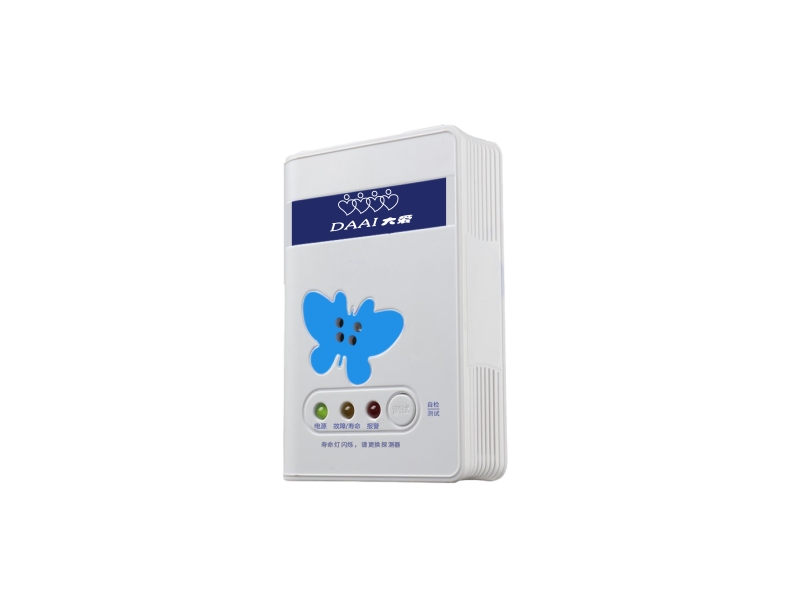

Laser Type Household Gas Detector JT-LBJG806
The laser-type household gas detector is an intelligent monitoring device specially designed for home gas safety protection. Developed based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), it focuses on methane gas leakage monitoring, fully complies with the new national standard GB15322.2-2019, and has passed the 3CF fire certification, building a solid safety line for home gas use.
Detail
Specifications
JT-LBJG806 Technical Parameters
- Model: JT-LBJG806
- Applicable Gas: Methane
- Executive Standard: GB15322.2-2019
- Detection Concentration Range: 0-100%LEL
- Warm-up Time: 15s
- Alarm Point: 10.0%LEL
- Operating Environment: 0-60℃ ≤95%RH
- Input Power: 110V-250V AC
- Static Power Consumption: ≤1W
- Alarm Power Consumption: ≤5W
- Response Time: ＜30 seconds
- Alarm Sound: ≥75dB (at 1m distance)
- Gas Sensor: 10-year service life (Laser Methane Sensor)
- Detector Dimension: L110.0mm×W75.5mm×H26.0mm
- Optional Configuration: Cat.1, 433MHz
- Certification: CCC
